Name: 4-20ma High Accuracy Electronic Pressure Transmitter Sensor Pressure Transducer
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80mA
Availability: InStock

المنزل > المنتجات > مستشعر ضغط IOT >

4-20ma High Accuracy Electronic Pressure Transmitter Sensor Pressure Transducer

4-20mA pressure transmitter sensor,high accuracy pressure transducer,electronic pressure sensor with warranty

high accuracy pressure transducer

electronic pressure sensor with warranty

مكان المنشأ:

كيان

اسم العلامة التجارية:

WNK

إصدار الشهادات:

CE/ROHS

رقم الموديل:

WNK80mA

اتصل بنا

اطلب اقتباس

تفاصيل المنتج

وسائل الإعلام المقاسة:

الماء، الهواء، الغاز، البخار

المواد السكنية:

304SS، 316SS

دقة:

0.5٪ فس

نطاق الضغط:

10 كيلو باسكال، -100 كيلو باسكال...70 ميجا باسكال

التطبيقات:

تبريد الهواء والماء HVAC، السيارات

إشارة الإخراج:

4-20 مللي أمبير، 0.5-4.5 فولت، 0--10 فولت، 3.3 فولت، I2C، RS485

نوع الضغط:

ضغط المقياس، الضغط المطلق، ضغط الختم

تصنيف IP:

IP65

إبراز:

4-20mA pressure transmitter sensor,high accuracy pressure transducer,electronic pressure sensor with warranty

high accuracy pressure transducer

electronic pressure sensor with warranty

شروط الدفع والشحن

منتجات ذات صلة

فيديو

Wnk 4-20mA 0.5-4.5V I2C IOT Pressure Transmitter Sensor for Water Air Gas

احصل على أفضل سعر

فيديو

4-20ma High Accuracy Electronic Pressure Transmitter Sensor Pressure Transducer

احصل على أفضل سعر

فيديو

Low Cost Ceramic Air Compressor Water Truck Fuel Oil Gas Brake Pressure Sensor

احصل على أفضل سعر

فيديو

مستشعر ضغط الماء WNK، مرسل ضغط ضاغط الهواء/مستشعر ضغط زيت محرك الوقود

احصل على أفضل سعر

اتصل بنا

86-551-65369655

اتصل الآن

وصف المنتج

4-20mA High Accuracy Electronic Pressure Transmitter Sensor Pressure Transducer

Key Specifications

Attribute	Value
Measured media	Water, Air, Gas, Steam
Housing material	304SS, 316SS
Accuracy	0.5%FS
Pressure range	10kpa, -100kpa...70Mpa
Applications	Water Air Refrigerant HVAC, Automobile
Output signal	4-20mA, 0.5-4.5V, 0-10V, 3.3V, I2C, RS485
Pressure Type	Gauge Pressure, Absolute Pressure, Sealing Pressure
IP rating	IP65

Technical Details

Applicable media: Liquid, Gas

Pressure Range: 0-60bar

Pressure Type: Gauge Pressure, Absolute pressure, Sealing pressure

Output: 4-20mA/0.5-4.5V/1-5V/0-10V/I2C

Accuracy: 1%F.S.(Typical), 0.5%F.S.(Typical)

Power: 24VDC/12VDC/5VDC/3.3V

Compensation temperature: -20~85ºC

Ambient temperature: -40~125ºC

Working temperature: -40~125ºC

Temperature drift (zero): ±0.15% F.S. (-20~85ºC)

Temperature drift (full range): ±0.15% F.S. (-20~85ºC)

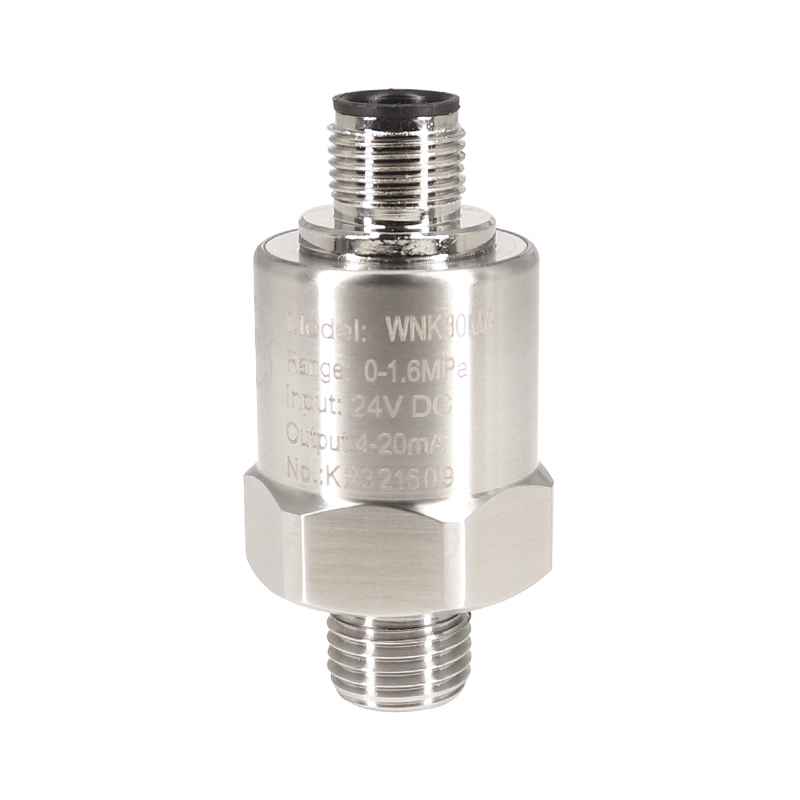

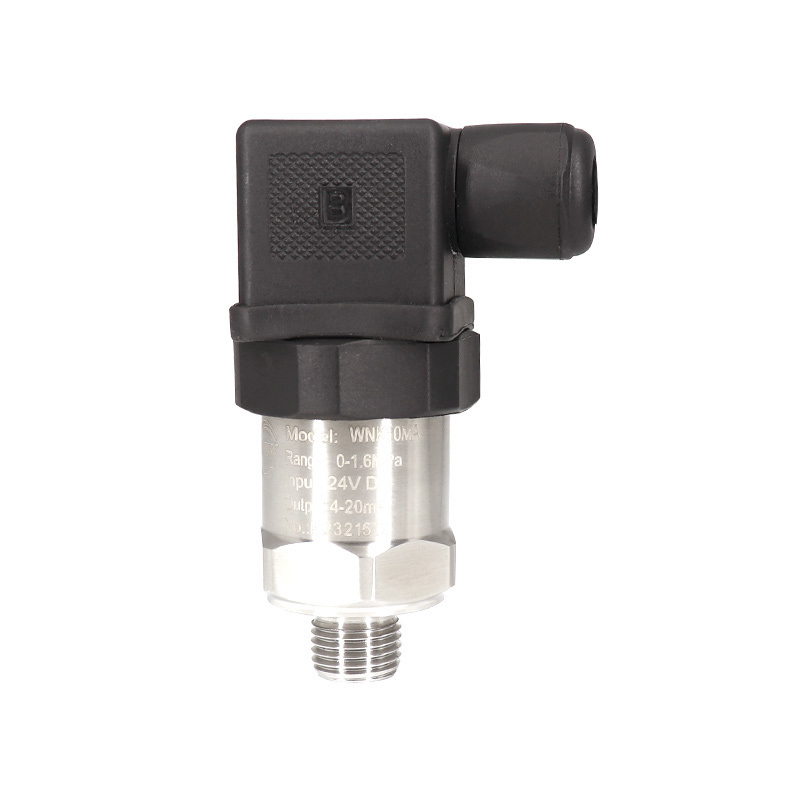

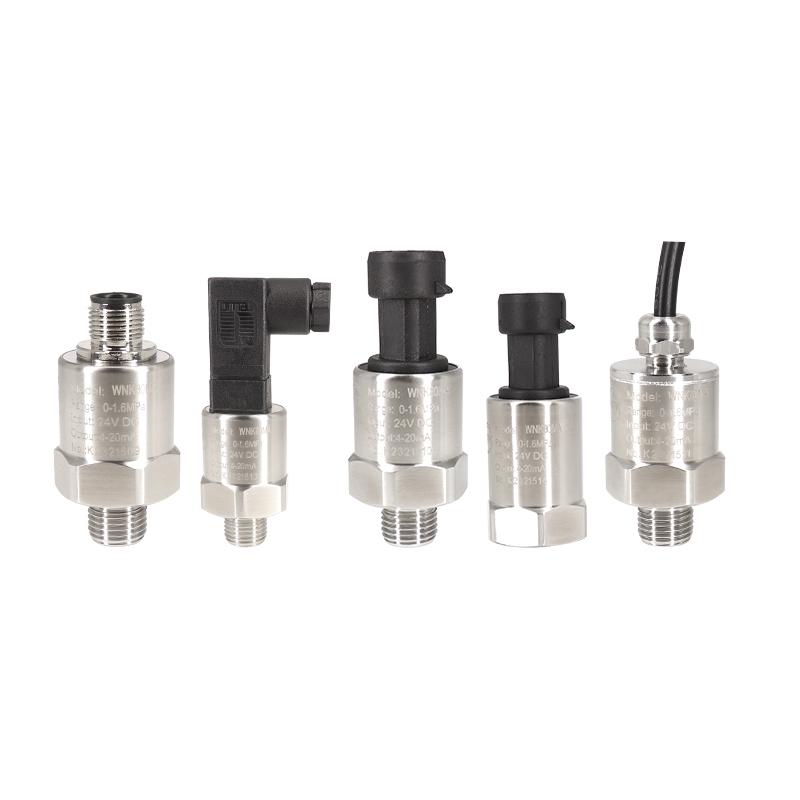

Power connection: Parkard, M12, DIN43650, Cable outlet

Mechanical connection: G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize

Housing material: 304 stainless steel (inner core is 316 stainless steel)

Protection: IP65

Product Overview

WNK80MA is a series of high performance compact pressure transmitter by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is 5~10 times of the range, completely solved poor overload in small range of other sensors. In addition to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. As high output and wide range of its core ceramic capacitive sensor, WNK80MA is especially suitable for harsh industrial environment pressure measurement.

Applications
