Name: WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK8010-19
Price: 42.00 USD
Availability: InStock

المنزل > المنتجات > جهاز إرسال مستوى الماء >

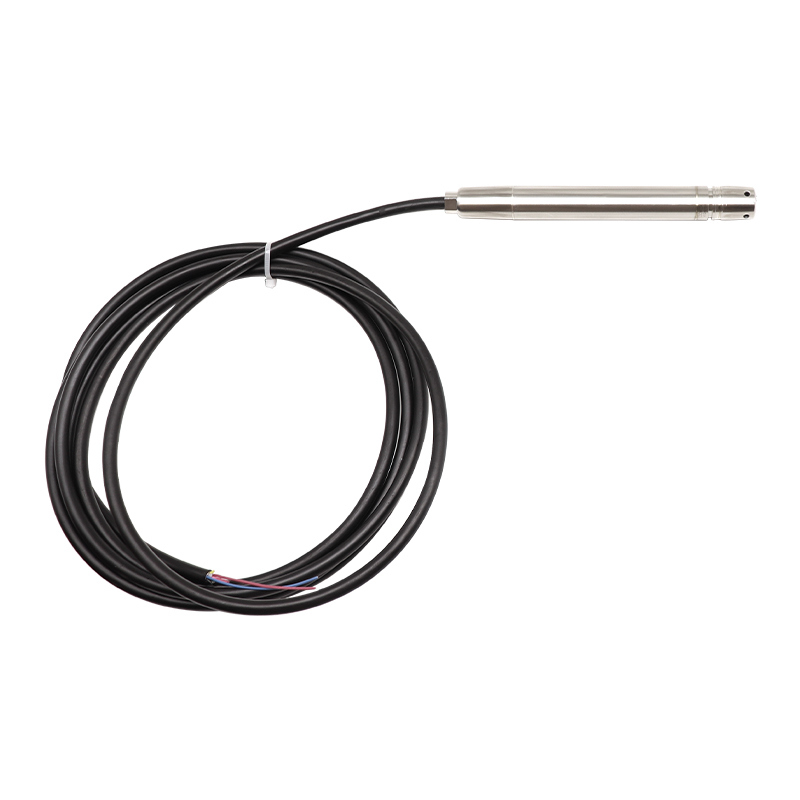

WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well

19mm submersible water level sensor,deep well water level transmitter,small diameter borehole sensor

deep well water level transmitter

small diameter borehole sensor

مكان المنشأ:

anhui ، الصين

اسم العلامة التجارية:

WNK

رقم الموديل:

WNK8010-19

اتصل بنا

اطلب اقتباس

تفاصيل المنتج

ضمان:

1 سنة

دعم مخصص:

OEM ، ODM

نطاق الضغط::

0 ... 2 ~ 200 متر

الإخراج:

4-20MA ، 0-5V ، 1-5V ، 0.5-4.5V ، 0-10V

دقة:

0.2 ٪ FS ، 0.5 ٪ FS ،

مزود الطاقة:

12 ~ 36 فولت تيار مستمر

فئة الحماية:

IP68

طلب:

مياه الأمطار ، مياه الشرب ، مياه الصرف ، مياه الصرف الصحي ، مياه البحر

المواد السكنية:

304SS ، 316L

درجة حرارة التشغيل::

-40 ~ 85 درجة

يكتب:

كَيّل

خدمة OEM:

OEM ، ODM ، التخصيص متاح

ميناء:

شنغهاي / نينغبو

إبراز:

19mm submersible water level sensor,deep well water level transmitter,small diameter borehole sensor

deep well water level transmitter

small diameter borehole sensor

شروط الدفع والشحن

الحد الأدنى لكمية

1pcs

الأسعار

$35.00 - $50.00/Pieces

تفاصيل التغليف

كل مجموعة في كرتون فردي واحد ، الحماية مع الرغوة. ثم في كرتون ماستر

وقت التسليم

5-8 أيام العمل

شروط الدفع

T/T ، Western Union ، Moneygram ، PayPal

القدرة على العرض

2000 قطعة/قطعة شهري مستشعر ضغط مستوى

منتجات ذات صلة

فيديو

WNK ATEX Explosion Proof LCD Display Liquid Level Sensor With 4-20mA for Water Tank

احصل على أفضل سعر

فيديو

WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well

احصل على أفضل سعر

فيديو

WNK Submersible Hydrostatic Water Level Sensor Probe for River Tank Liquid Level Transmission Pressure Transmitter

احصل على أفضل سعر

فيديو

316L Stainless Steel 4-20mA RS485 1-10V Liquid Level Transmitter Submersible Water Diesel Fuel Tank Level Sensors

احصل على أفضل سعر

اتصل بنا

اتصل الآن

وصف المنتج

Product Description

Output	4-20mA, 0-5V, 1-5V, customization
Measured Range	0-0.5~200mH2O
Max overload	150% of sensor range
Pressure Type	Gage,Absolute
Accuracy	±0.2% FS/year
Long Term Stability	±0.25% FS/year
Housing Material	Stainless steel
Cable Material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Operating Temperature	-30~85℃
Compensation Temperature	-20~70℃
Protection Class	IP68

WNK8010-19 deep well water level sensor has high accuracy, small volume,stability,plus resistance to abrasion,oil,acid&alkali and high intensity gas lead cable ensured that it can meet the different occasions measurement requirements.

no-polarity two wire current output.

♦ It is widely used in well, standpipe, borewell, sewage, river and lakes treatment as well as channel, large rivers, l reservoirs and coastline monitoring.

♦ This product has got intrinsic safety certification,explosion proof certification and CE certification.

Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price

Size/Principle
