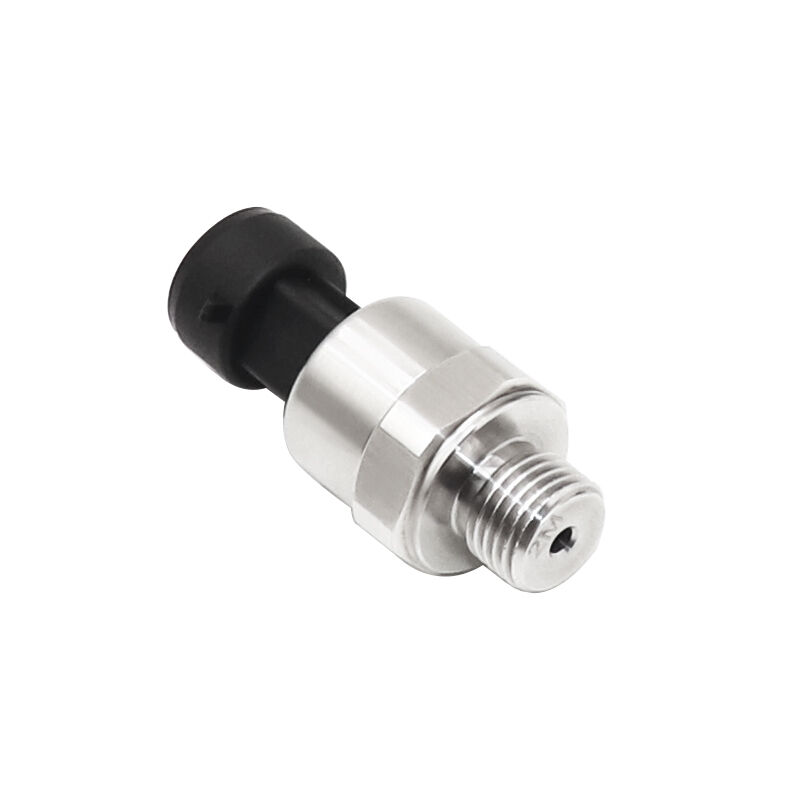

Name: WNK 0.5-4.5V G1/4 Coffee Machine Pressure Sensor Transmitter
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK125P
Availability: InStock

المنزل > المنتجات > مستشعر ضغط IOT >

WNK 0.5-4.5V G1/4 Coffee Machine Pressure Sensor Transmitter

G1/4 coffee machine pressure sensor,0.5-4.5V pressure transmitter,IOT coffee machine sensor

0.5-4.5V pressure transmitter

IOT coffee machine sensor

مكان المنشأ:

تشيان

اسم العلامة التجارية:

WNK

رقم الموديل:

WNK125P

اتصل بنا

اطلب اقتباس

تفاصيل المنتج

درجة حرارة التخزين:

-50 ℃ ~ 135C

ميدوم:

زيت المحرك ، زيت بو ، التبريد ، الغاز ، الماء أو السائل

دقة:

+1 ٪ FS (الخطية ، التباطؤ ، التكرار ، المعايرة)

الموصل الكهربائي:

باكارد/ منفذ الكابل

نطاق الضغط:

0 ~ 5bar ، 0 ~ 10bar ، 0 ~ 20bar ، 0 ~ 40bar ، (cutomized)

الإخراج:

0.5V ~ 4.5V DC ، (10 ٪ -90 ٪ VCC)

اتصال العملية:

G1/ 4 ، 7/16-unffemale ، (cusomized)

مادة:

الإسكان 304 SST ؛ أجزاء مبللة 316L

إبراز:

G1/4 coffee machine pressure sensor,0.5-4.5V pressure transmitter,IOT coffee machine sensor

0.5-4.5V pressure transmitter

IOT coffee machine sensor

شروط الدفع والشحن

منتجات ذات صلة

فيديو

Food Grade 316 Pressure Sensor Transmitter 5V Output NPT1/4 for Coffee Machine

احصل على أفضل سعر

فيديو

WNK Pressure Transducer with Universal Industrial 4-20mA Absolute Vacuum Pressure Sensor Transmitter

احصل على أفضل سعر

فيديو

WNK 4-20ma Water Pressure Transmitter Sensor for HVAC and Water Treatment

احصل على أفضل سعر

فيديو

مستشعر ضغط الماء WNK 0-10 بار 150 رطل لكل بوصة مربعة Npt 1/8 0.5-4.5 فولت لمستشعر الهواء والغاز

احصل على أفضل سعر

اتصل بنا

اتصل الآن

وصف المنتج

WNK Pressure Sensor for Coffee Machine

Product Description

The WNK125P is a diffusible silicon oil-filled pressure sensor designed forautomotive use. The element is made with a fully welded 316L diaphragm anddoes not require any O-ring seals that could come into contact with the pressuremedium, making it compatible with all types of liquids. The absence of anymoving parts results in a longer service life. With high temperature stability andaccuracy,this pressure sensor is mainly used in automotive, transmission, airconditioning and oil pressure measurement applications.

Feature

Multiple process connection options for easy installation. 1% typical accuracy, providing excellent accuracy for critical applications. Factory calibrated, no field calibration required. Plug-and-play reliability. Rugged, compact design saves installation space. OEM/ODM available to accommodate special needs.

Model	WNK125P
Power Supply	4.75~5.25VDC(( With reverse polarity protecticion overvoltage protection 32V DC
Supply current	15mA MAX
Pressure range	0~5Bar,0~10Bar,0~20Bar,0~40Bar,(Cutomized)
Output	0.5V~4.5V DC,(10%-90%VCC)
Process Connection	G1/4,7/16-UNFfemale,(cusomized)
Electrical connector	Pack
Working Temperature	-40℃C~130℃℃
Storage Temperature	-50℃~135C
Safe Pressure	1.5~2 time of the pressure range
Burst Pressyre	100Bar G
Accuracy	+1%F.S( Linearity,Hysteresis, Repeatability, Calibration)
Total Error Band	Static error band @25℃,5VDC,+3%(-30℃~125°℃)
Meadium	Engine oil, POE oil, refrigerant, gas, water or liquid
Mounting Torque	10~20N·m
Anti-freeze function	The sensor has no anti-freezing function when the sensor's working medium is water.
Material	Housing 304 SST; wetted parts 316L
