مكان المنشأ:
انهوى، الصين
اسم العلامة التجارية:
WNK
رقم الموديل:
WNK81TP

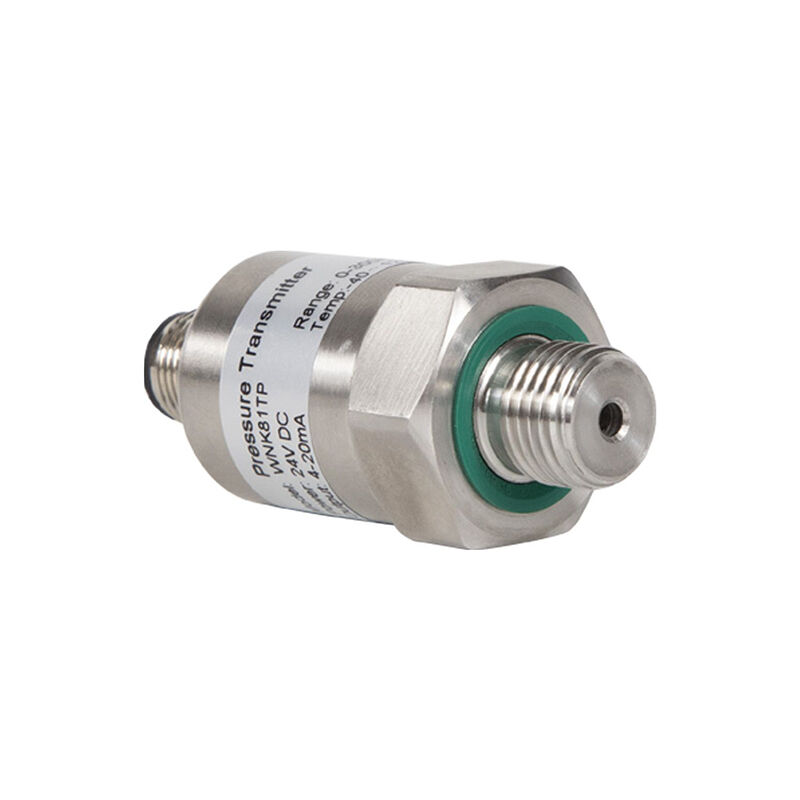

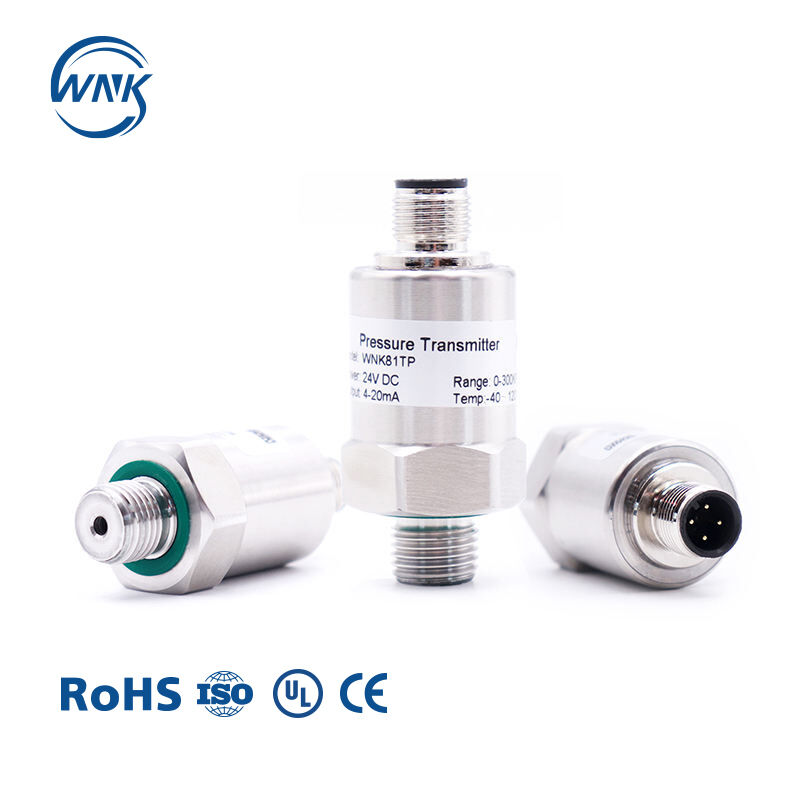

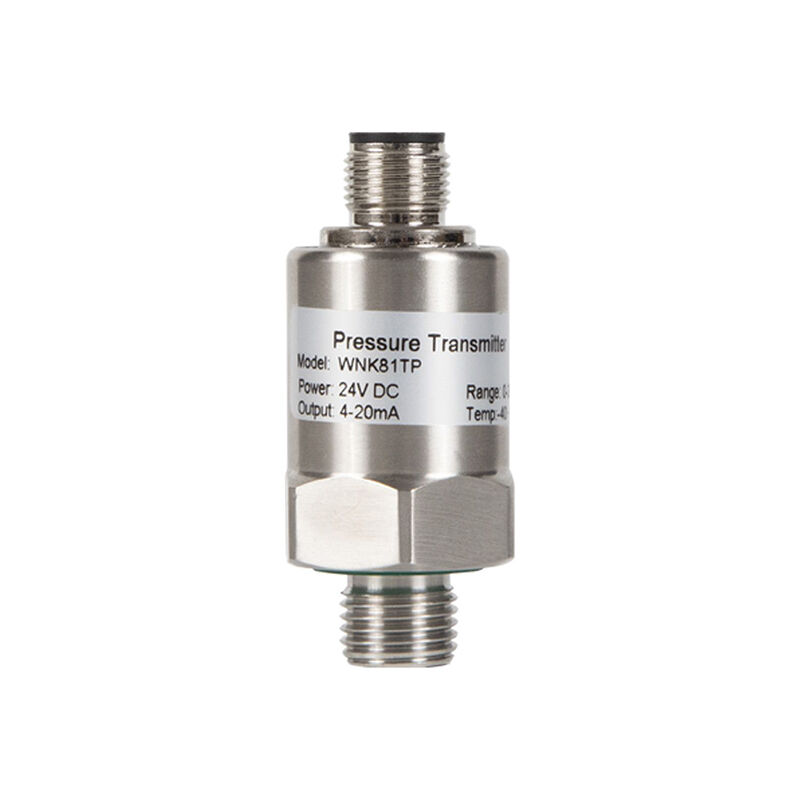

Temperature Pressure Sensor Transmitter
There is an increasing demand for sensors that can measure temperature and pressure simultaneously.
WNK81TP integrates temperature and pressure measurement in the one sensor, which saves the material cost of the sensor and is convenient for users. It also brings convenience to field installation.
Quik information
1. Temperature range: -40 to 120℃
2.Pressure range 0-40kpa~70bar
3. High performance diffusion silicon oil-filled sensor
4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ I²C + PT100 outputs available
5. Small dimensions, dimension customizble
6. Direct cable outlet,M12
7. OEM, ODM, customization service available
8. Process connector: G1/4, M12*1.5, 1/4NPT
Order code
| Model | Description |
| WNK81TP | Temp-pressure sensor |
| Code | Pressure type |
| A | Absolute pressure |
| G | Gauge pressure |
| Code | Measure range |
| A | 0.4bar |
| B | 1.6bar |
| C | 4 bar |
| D | 10 bar |
| E | 25 bar |
| F | 40 bar |
| G | 70 bar |
| H | Special to be costomized |
| Code | Output |
| 1 | 0.5…4.5V + PT100 |
| 2 | 4…20mA + PT100 |
| 3 | I2C + PT100 |
| 4 | Costomized |
| Special to be costomized | |
| Code | Electrical connector |
| C1 | M12×1P |
| C2 | Cable output A( Please advise the required cable length, such as 01 for 1 meter ) |
| C3 | Cable output B( Please advise the required cable length, such as 01 for 1 meter ) |
| Code | Process connection |
| P1 | G1/4 |
| P2 | 1/4-18NPT |
| P3 | 1/8-27NPT |
| P4 | M14×1.5 |
| P5 | M12×1.5 |
| P6 | 1/4-19PT |
| P7 | 7/16-20UF(female) |
| P8 | Costomized |
| Special to be costomized | |
|
Typical model code:WNK81TP GB2 C1 P1 WNK81TP GB2 C301 P1________C301 able length 1 meter |
|
