WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank

WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank

ATEX explosion proof water level sensor,submersible water tank level transmitter,underground water level sensor with warranty

submersible water tank level transmitter

underground water level sensor with warranty

مكان المنشأ:

انهوى، الصين

اسم العلامة التجارية:

WNK

رقم الموديل:

WNK8010-TT

اتصل بنا
اطلب اقتباس
تفاصيل المنتج
ضمان:
1 سنة
دعم مخصص:
تصنيع المعدات الأصلية، أوديإم
نطاق الضغط::
0...2~200 متر
الإخراج:
4-20 مللي أمبير، 0-5 فولت، 1-5 فولت، 0.5-4.5 فولت، 0-10 فولت
دقة:
0.2% فس، 0.5% فس،
مزود الطاقة:
12 ~ 36 فولت تيار مستمر
فئة الحماية:
IP68
طلب:
مياه الأمطار، مياه الشرب، مياه الصرف الصحي، مياه الصرف الصحي، مياه البحر
مواد الإسكان:
304 إس إس، 316 لتر
درجة حرارة التشغيل::
-40~85 درجة مئوية
يكتب:
كَيّل
خدمة صانعي القطع الأصلية:
OEM، ODM، التخصيص متاح
ميناء:
شنغهاي / نينغبو
إبراز:

ATEX explosion proof water level sensor,submersible water tank level transmitter,underground water level sensor with warranty

,

submersible water tank level transmitter

,

underground water level sensor with warranty

شروط الدفع والشحن
الحد الأدنى لكمية
1 قطعة
تفاصيل التغليف
كل مجموعة في كرتونة فردية واحدة، حماية بالرغوة. ثم في الكرتون الرئيسي
وقت التسليم
5-8 أيام عمل
شروط الدفع
/ تي تي، ويسترن يونيون، مونيغرام، بايبال
القدرة على العرض
2000 قطعة / قطع شهر استشعار الضغط
وصف المنتج

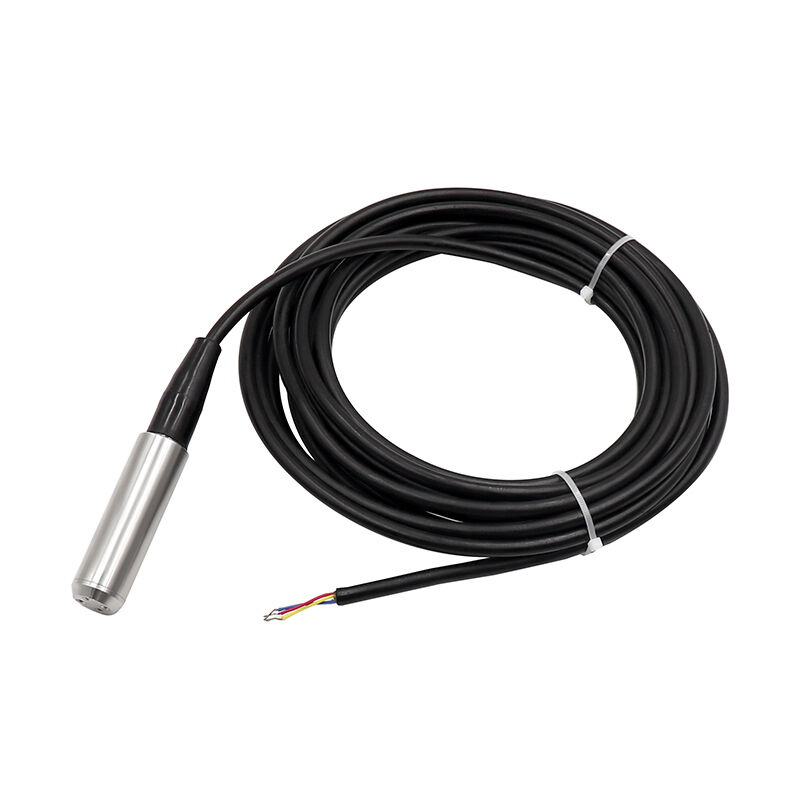

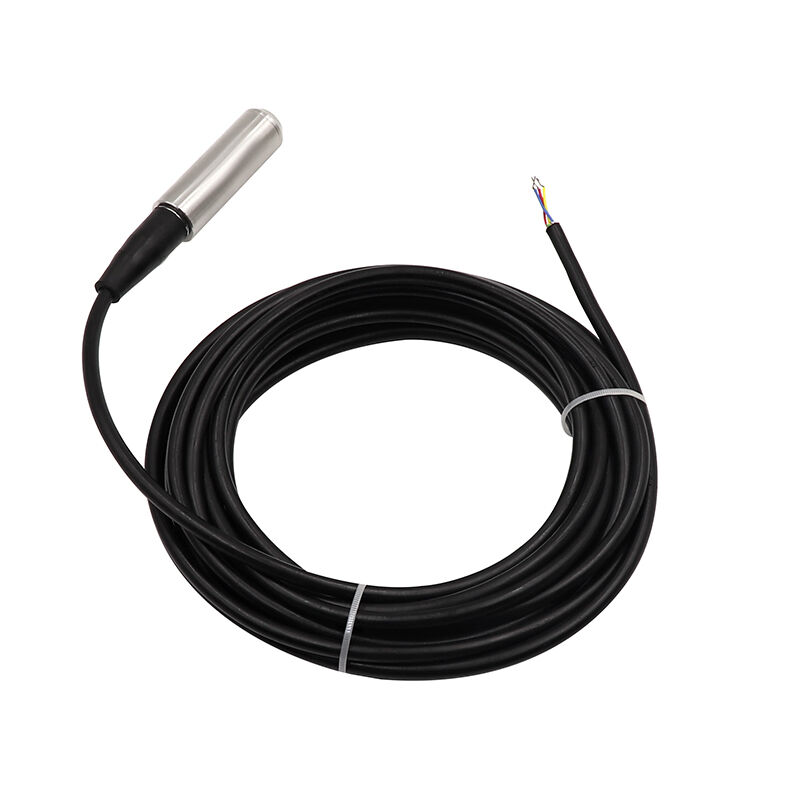

Underground Water Tank Level Sensor





Hefei Wnk Smart Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production, sales, and service of various advanced and reliable sensors and transmitters. We are committed to providing users with sensor, transmitter, and product technology solutions tailored to different application needs in different fields. Since its establishment in 2004, WNK has provided reliable products and comprehensive services to customers from over 160 countries worldwide. The goal of WNK is to enable more customers to obtain better products and services at lower prices.







WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to 0.25%FS/Year with high protection of IP68.


Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price







Dimensions - IP68 Sumbersible Liquid Level Sensor


WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank 0
WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank 1
WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank 2
Product Show
WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank 3
